Turn up the fun on the streets with this supermoto. Every trip is an experience when you ride through the city sporting a quick-revving engine and nimble handling. Be quick to steal the scene with equal parts performance and attitude.
| Maximum Power | 14.0 kW {19 PS} / 7,600 rpm |
|---|---|
| Maximum Torque | 19.8 Nm {2.0 kgfm} / 6,100 rpm |
| Engine | 4-stroke Single |
| Displacement | 233 cc |
| Bore x Stroke | 67.0 x 66.0 mm |
| Compression Ratio | 9.4:1 |
| Valve System | SOHC, 2 valves |
| Fuel System | Fuel injection: ø32 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Air-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | 6-speed, return |
| Primary Reduction Ratio | 2.871 (89/31) |
| Gear Ratio: 1st | 3.000 (39/13) |
| Gear Ratio: 2nd | 2.067 (31/15) |
| Gear Ratio: 3rd | 1.556 (28/18) |
| Gear Ratio: 4th | 1.261 (29/23) |
| Gear Ratio: 5th | 1.040 (26/25) |
| Gear Ratio: 6th | 0.852 (23/27) |
| Final Reduction Ratio | 3.071 (43/14) |
| Clutch | Wet multi-disc, manual |
| Final Drive | Chain |
| Frame | Perimeter, high-tensile steel |
| Front Suspension | ø37 mm inverted fork |
| Rear Suspension | New Uni Trak with adjustable spring preload |
| Front Wheel Travel | 204 mm |
| Rear Wheel Travel | 168 mm |
| Rake | 26.5° |
| Trail | 86 mm |
| Steering Angle (L/R) | 45° / 45° |
| Front Tyre | 110/70-17M/C 54P |
| Rear Tyre | 120/70-17M/C 58P |

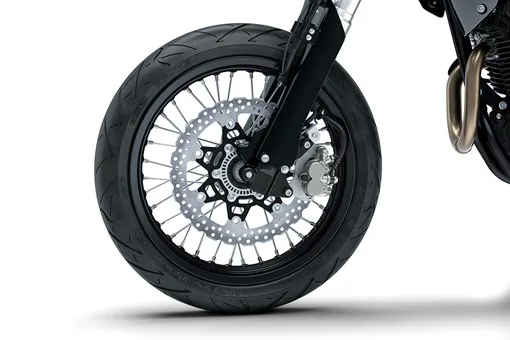

| Front Brake/s | ø300 mm semi-floating petal disc |
| Front Caliper/s | Twin-piston |
| Rear Brake | ø220 mm petal disc |
| Rear Caliper | Single-piston |
| Dimensions (LxWxH) | 2,050 x 835 x 1,120 mm |
| Wheelbase | 1,375 mm |
| Road Clearance | 230 mm |
| Seat Height | 845 mm |
| Curb Weight* | 135 kg |
| Fuel Capacity | 7.5 litres |
| Model Code | KLX230RPFNN |
