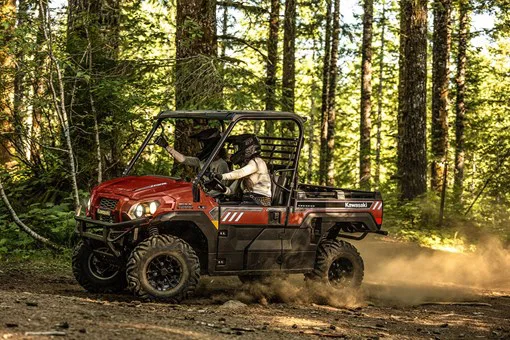

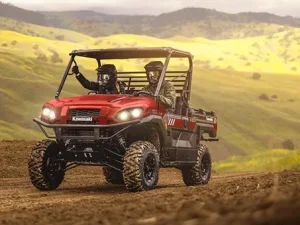

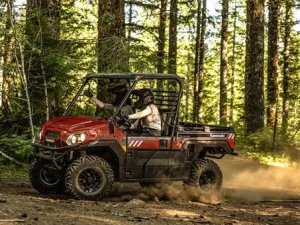

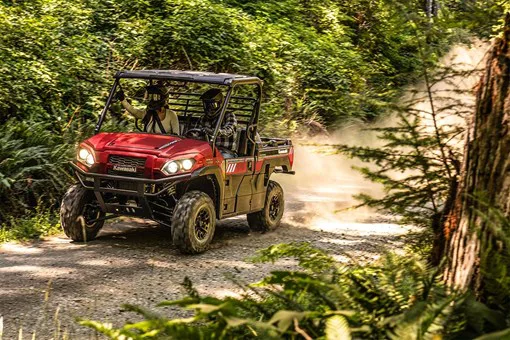

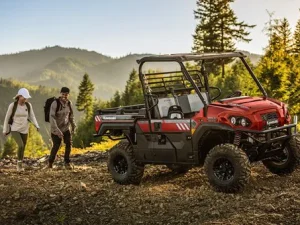

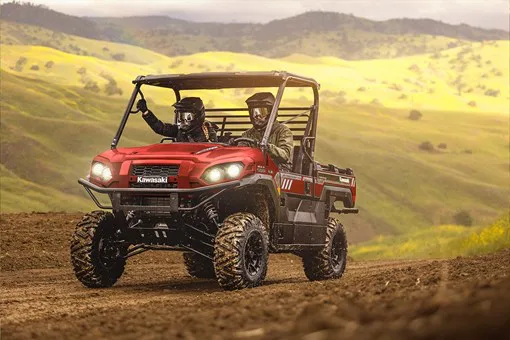

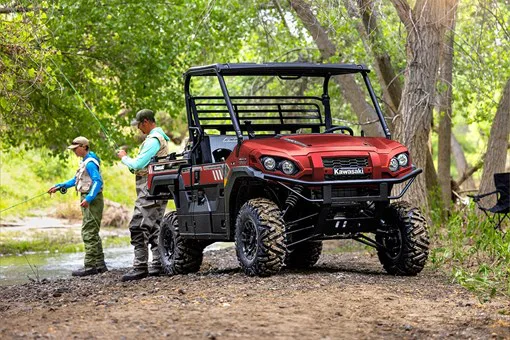

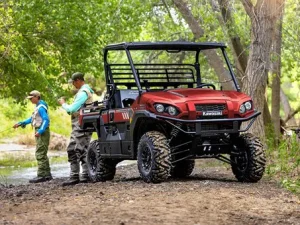

Kawasaki MULE PRO-FXR 1000

$28,654.00

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

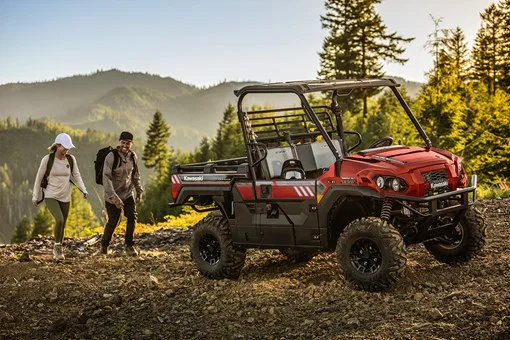

The Kawasaki MULE PRO-FXR 1000 LE side x side takes the rugged capability of MULE PRO side x sides to the trails. Turn everyday riding into an unrivaled experience with the combination of comfort, capability, and aggressive styling. With a compact size, high-capacity engine and three-passenger seating, the MULE PRO-FXR 1000 LE is ready to put in the work and then cut loose when the chores are done.

Key Features

  • Kawasaki-Built, Liquid-Cooled 999
  • Massive ground clearance
  • Long-travel double-wishbone suspension
  • Serious-looking front-end styling
  • Improved maintenance (easy access to oil filter, dipstick and air-cleaner filter)
  • Kawasaki strong 3-year limited warranty
Maximum Power52 kW {71 PS} / 6,500 rpm
Maximum Torque83 Nm {8.5 kgfm} / 4,500 rpm
Engine4-stroke Parallel Twin
Displacement999 cc
Bore x Stroke92.0 x 75.1 mm
Compression Ratio10.1:1
Valve SystemDOHC, 4 valves per cylinder
Fuel SystemFuel injection: ø38 mm x 1
IgnitionDigital
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump
TransmissionDual-range (high/low) CVT with reverse
Primary Reduction Ratio3.28 ~ 0.70 (belt converter)
Gear Ratio: Forward (High)1.668 (34/33 x 34/21)
Gear Ratio: Forward (Low)3.312 (45/22 x 34/21)
Gear Ratio: Reverse2.571 (27/17 x 34/21)
Final Reduction Ratio: Front6.382 (31/17 x 35/10)
Final Reduction Ratio: Rear6.245 (31/21 x 55/13)
Final Drive2WD/4WD, shaft, dual-mode differential
FrameLadder type, tubular steel
Front SuspensionDouble wishbone
Rear SuspensionDouble wishbone
Front Wheel Travel279 mm
Rear Wheel Travel256 mm
SteeringRack and pinion with Electric Power Steering
Rake3.7°
Trail21 mm
Steering Angle (L/R)40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Front Tyres27 x 9.00-12 6PR
Rear Tyres27 x 11.00-12 6PR
Front BrakesDual ø212 mm discs
Front CalipersTwo-piston
Rear Brake/sDual ø212 mm discs
Rear Caliper/sSingle-piston
Parking BrakeDual discs (mechanical)
Dimensions (LxWxH)3,100 x 1,625 x 1,995 mm
Wheelbase2,025 mm
Road Clearance310/335 mm (standard/max preload)
Seat Height930 mm
Curb Weight*802 kg
Estimated Dry Weight**764 kg
Fuel Capacity30 litres
Tread Front / Rear1,373 mm / 1,307 mm
Turning Radius4.3 m
Cargo Bed Dimensions (LxWxH)955 x 1,355 x 280 mm
Cargo Bed Capacity453 kg
Seating Capacity3
Vehicle Load Capacity717 kg
Towing Capacity907 kg
Lighting2x halogen, 2x LED headlights
Model CodeKAF1000NTFNN
