Kawasaki MULE PRO-DX DIESEL

$28,204.00

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

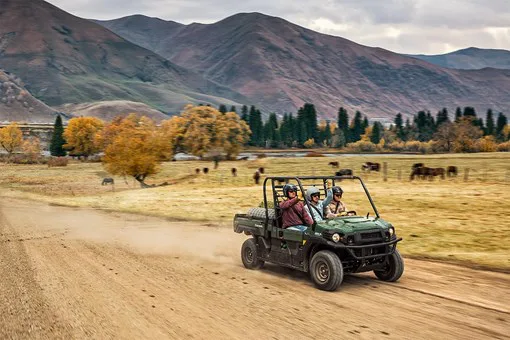

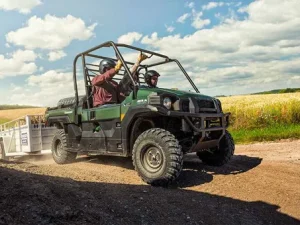

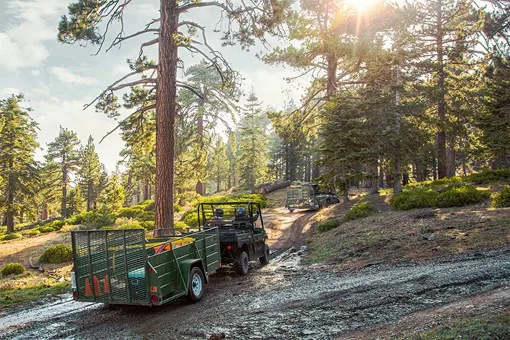

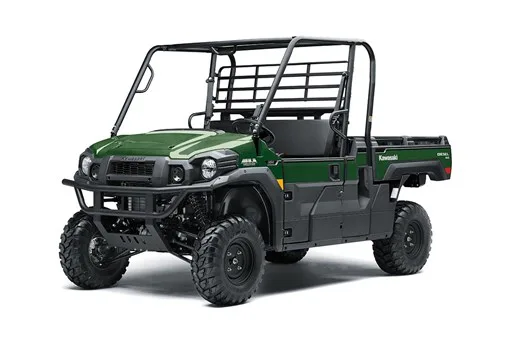

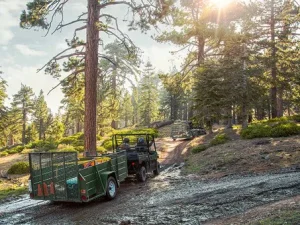

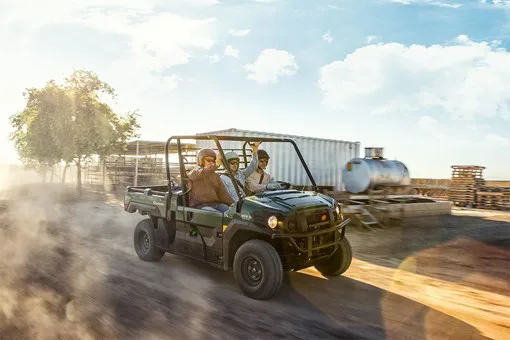

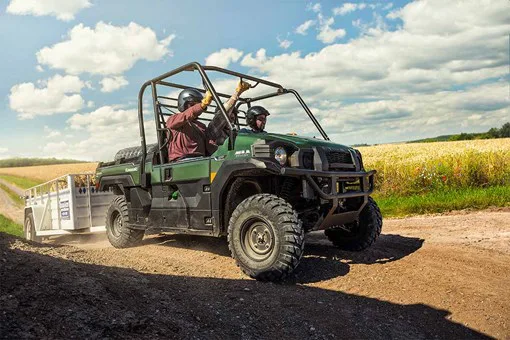

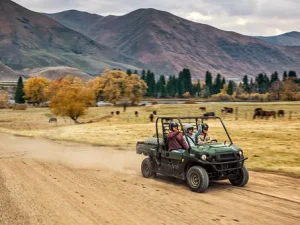

The MULE PRO-DX side x sides combine the rugged full-size MULE PRO chassis capability and versatility with the hardworking muscle of a diesel engine. This high capacity, three-passenger vehicle has the ability to move gear, tools, materials and people at the jobsite.

Key Features

  • Roomy cabin with 3-passenger seating
  • 993
  • Massive 1.9 m² cargo bed
  • 1-ton (907 kg) towing capacity
  • Independent front and rear suspension
  • Continuously Variable Transmission (CVT)
  • Electrically selectable 2WD/4WD, dual-mode rear differential
  • Speed-sensitive Electric Power Steering (EPS)
Maximum Power17.8 kW {24 PS} / 3,600 rpm
Maximum Torque52.1 Nm {5.3 kgfm} / 2,400 rpm
Engine4-stroke In-Line 3-cylinder diesel
Displacement993 cc
Bore x Stroke74.0 x 77.0 mm
Compression Ratio23.5:1
Valve SystemOHV
Fuel SystemIn-line injection pump
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump
TransmissionDual range (high/low) CVT with reverse
Primary Reduction Ratio3.334 ~ 0.756 (belt converter)
Gear Ratio: Forward (High)1.952 (34/33 x 36/19)
Gear Ratio: Forward (Low)3.876 (45/22 x 36/19)
Gear Ratio: Reverse3.009 (27/17 x 36/19)
Final Reduction Ratio: Front6.382 (31/17 x 35/10)
Final Reduction Ratio: Rear6.245 (31/21 x 55/13)
Final Drive2WD/4WD, shaft, dual-mode differential
FrameLadder type, tubular steel
Front SuspensionDouble wishbone
Rear SuspensionDouble wishbone
Front Wheel Travel222 mm
Rear Wheel Travel217 mm (left), 220 mm (right)
SteeringRack and pinion with Electric Power Steering
Rake4.4°
Steering Angle (L/R)40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Front Tyres26 x 9.00-12 4PR
Rear Tyres26 x 11.00-12 4PR
Front BrakesDual ø212 mm discs
Front CalipersTwo-piston
Rear Brake/sDual ø212 mm discs
Rear Caliper/sSingle-piston
Parking BrakeDual discs (mechanical)
Dimensions (LxWxH)3,385 x 1,625 x 2,015 mm
Wheelbase2,345 mm
Road Clearance265 mm
Seat Height885 mm
Curb Weight*856 kg
Estimated Dry Weight**817 kg
Fuel Capacity30 litres
Tread Front / Rear1,385 mm / 1,315 mm
Turning Radius4.8 m
Cargo Bed Dimensions (LxWxH)1,375 x 1,355 x 280 mm
Cargo Bed Capacity453 kg
Seating Capacity3
Vehicle Load Capacity695 kg
Towing Capacity907 kg
Lighting2x halogen headlights
Model CodeKDF1000ATFNN
