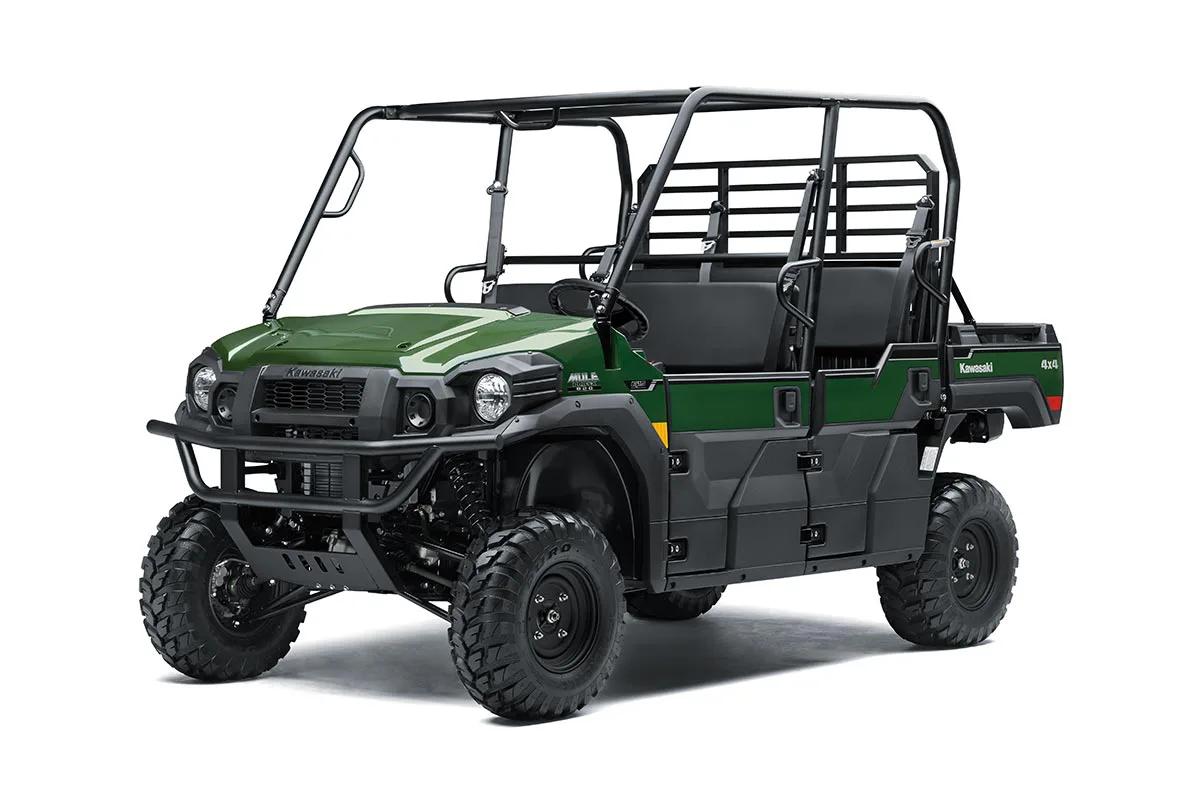

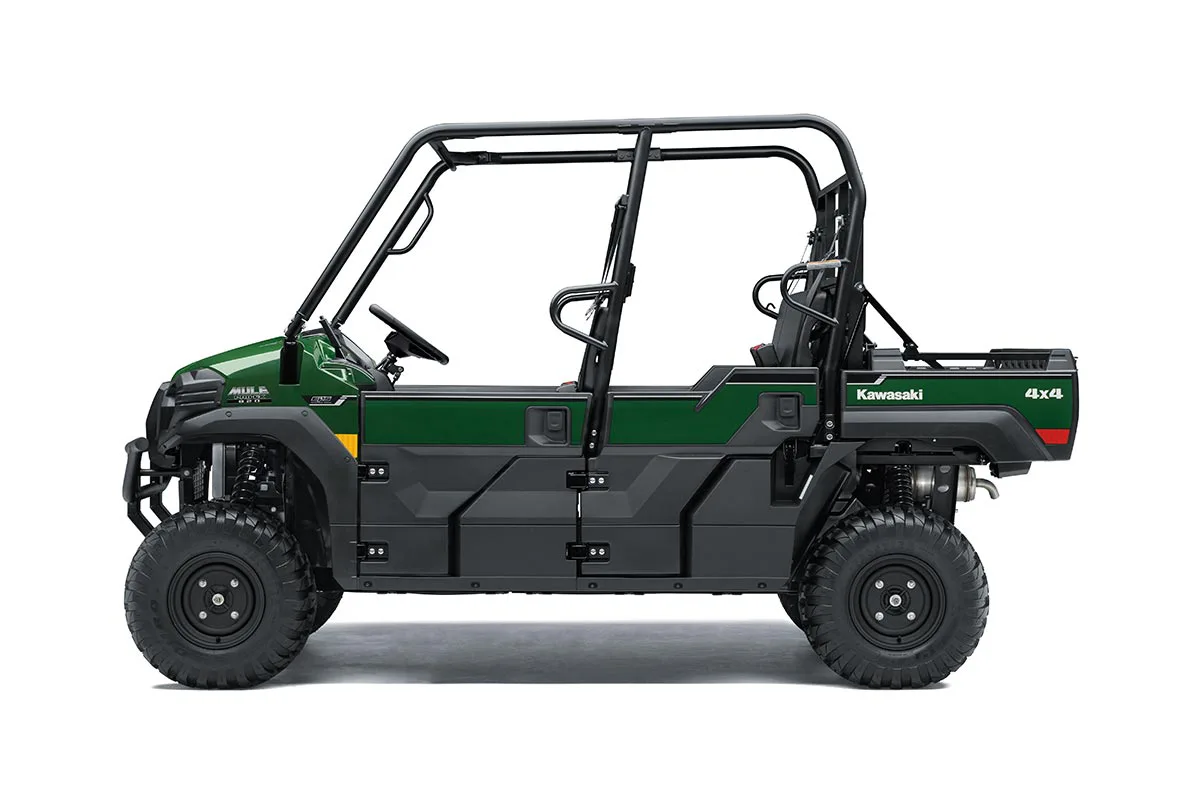

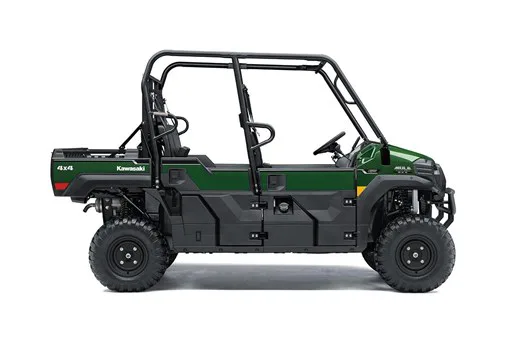

Kawasaki MULE PRO-FXT 820

$27,304.00

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

The MULE PRO-FXT 820 side x side is a full-size, high-capacity vehicle featuring a 3- to 6-passenger Trans Cab system. Strong enough for work and play, this side x side has an impressive hauling and towing capability, even in six-passenger mode. With the ability to move people and payloads, the MULE PRO-FXT 820 can do it all.

Key Features

  • 3- to 6-passenger Trans Cab System
  • 812
  • 1-ton (907 kg) towing capacity
  • Independent front and rear suspension
  • Durable steel-based cargo bed
  • Continuously Variable Transmission (CVT)
  • Electrically selectable 2WD/4WD, dual-mode rear differential with diff. lock
  • Speed-sensitive Electric Power Steering (EPS)
  •  Kawasaki Genuine KQR plastic roof
Maximum Power35 kW {48 PS} / 5,500 rpm
Maximum Torque65 Nm {6.6 kgfm} / 3,500 rpm
Engine4-stroke In-Line 3-cylinder
Displacement812 cc
Bore x Stroke72.0 x 66.5 mm
Compression Ratio9.5:1
Valve SystemDOHC, 4 valves per cylinder
Fuel SystemFuel injection: ø34 mm x 1
IgnitionBattery & coil
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump
TransmissionDual range (high/low) CVT with reverse
Primary Reduction Ratio3.33 ~ 0.70 (belt converter)
Gear Ratio: Forward (High)1.803 (34/33 x 35/20)
Gear Ratio: Forward (Low)3.580 (45/22 x 35/20)
Gear Ratio: Reverse2.779 (27/17 x 35/20)
Final Reduction Ratio: Front6.382 (31/17 x 35/10)
Final Reduction Ratio: Rear6.245 (31/21 x 55/13)
Final Drive2WD/4WD, shaft, dual-mode differential
FrameLadder type, tubular steel
Front SuspensionDouble wishbone
Rear SuspensionDouble wishbone
Front Wheel Travel222 mm
Rear Wheel Travel217 mm (left), 220 mm (right)
SteeringRack and pinion with Electric Power Steering
Rake4.4°
Steering Angle (L/R)40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT)
Front Tyres26 x 9.00R12 4PR
Rear Tyres26 x 11.00R12 4PR
Front BrakesDual ø212 mm discs
Front CalipersTwo-piston
Rear Brake/sDual ø212 mm discs
Rear Caliper/sSingle-piston
Parking BrakeDual discs (mechanical)
Dimensions (LxWxH)3,385 x 1,625 x 1,970 mm
Wheelbase2,345 mm
Road Clearance260 mm
Seat Height880 mm (front), 965 mm (rear)
Curb Weight*886 kg
Estimated Dry Weight**846 kg
Fuel Capacity30 litres
Tread Front / Rear1,389 mm / 1,321 mm
Turning Radius4.8 m
Cargo Bed Dimensions (LxWxH): 6-Person Mode560 x 1,363 x 279 mm
Cargo Bed Dimensions (LxWxH): 3-Person Mode1,085 x 1,363 x 279 mm
Cargo Bed Capacity: 6-Person Mode158 kg
Cargo Bed Capacity: 3-Person Mode453 kg
Seating Capacity3 or 6
Vehicle Load Capacity717 kg
Towing Capacity907 kg
Lighting2x halogen headlights
Model CodeKAT820BTFNN
