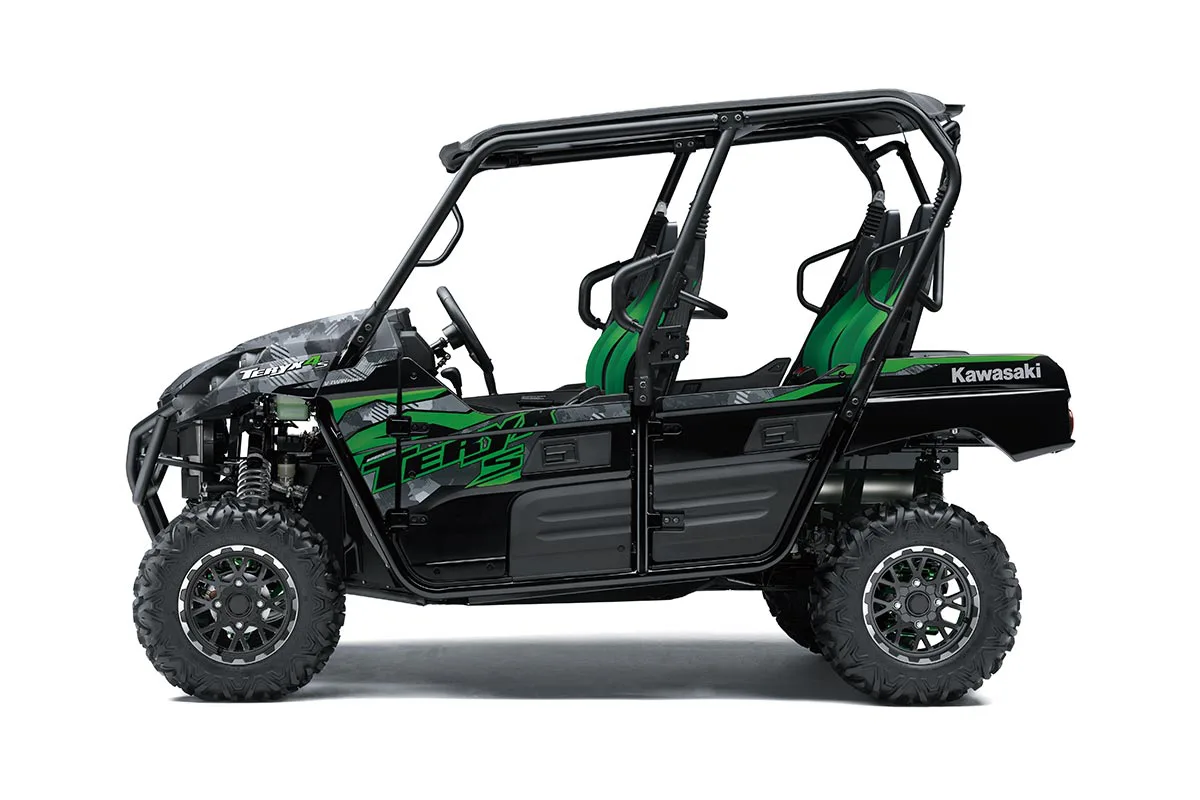

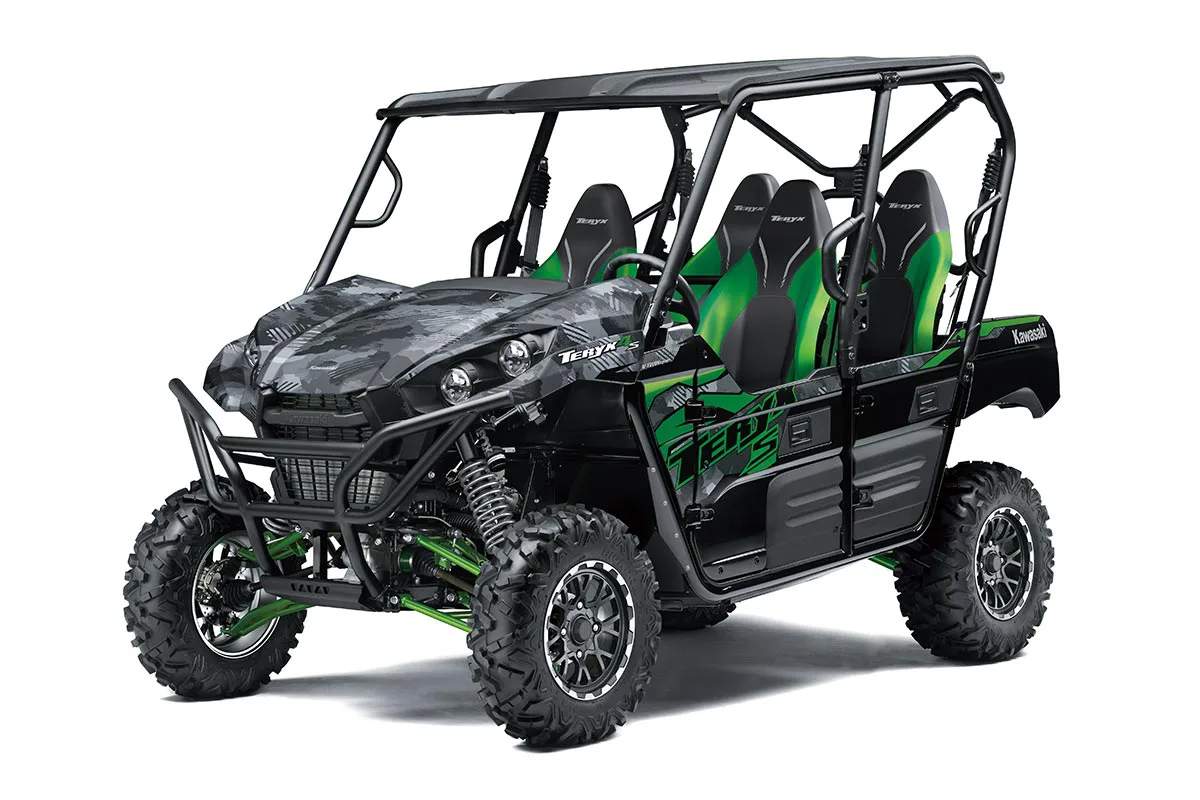

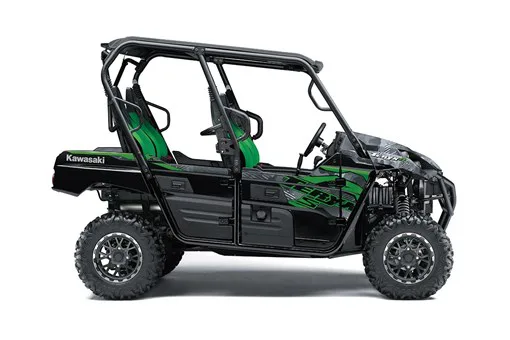

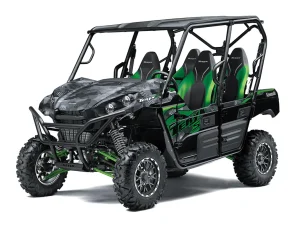

Kawasaki TERYX4 S LE

$27,454.00

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

Eager for action, the four-passenger Teryx4 side x side is built to tackle tough trails. With the perfect combination of rugged sport performance and capability, the Teryx4 is made to conquer the outdoors with the entire crew on board. Take adventure to the next level with extra features only found on the Teryx4 S models.

Key Features

  • 783
  • Speed-sensitive Electric Power Steering (EPS)
  • FOX LSC Piggyback Shocks
  • Roomy seating for 4
  • Kawasaki strong 3-year limited warranty
  • Long-travel suspension
  • Wide tread width
  • Long high-clear
Maximum Power43 kW {58 PS} / 6,750 rpm
Maximum Torque64 Nm {6.5 kgfm} / 5,500 rpm
Engine4-stroke 90° V-Twin
Displacement783 cc
Bore x Stroke85.0 x 69.0 mm
Compression Ratio10.7:1
Valve SystemSOHC, 4 valves per cylinder
Fuel SystemFuel injection: ø36 mm x 2
IgnitionBattery & coil (transistorised ignition)
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump
TransmissionDual range CVT with centrifugal clutch and reverse
Primary Reduction Ratio2.788 ~ 0.725 (belt converter)
Gear Ratio: Forward (High)3.279 (28/26 x 30/19 x 27/14)
Gear Ratio: Forward (Low)5.553 (31/17 x 30/19 x 27/14)
Gear Ratio: Reverse4.568 (16/12 x 18/16 x 30/19 x 27/14)
Final Reduction Ratio: Front4.375 (35/8)
Final Reduction Ratio: Rear4.400 (44/10)
Final Drive2WD/4WD, shaft
FrameDouble-X reinforcement type, tubular carbon steel
Front SuspensionDouble wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping
Rear SuspensionDouble wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping
Front Wheel Travel272 mm
Rear Wheel Travel254 mm
SteeringRack and pinion with Electric Power Steering
Rake
Trail39 mm
Steering Angle (L/R)37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT)
Front TyresMAXXIS Bighorn 2.0 27 x 9R14 6PR
Rear TyresMAXXIS Bighorn 2.0 27 x 11R14 6PR
Front BrakesDual ø200 mm discs
Front CalipersTwo-piston
Rear Brake/sEnclosed wet multi-plate
Parking BrakeEnclosed wet multi-plate
Dimensions (LxWxH)3,185 x 1,590 x 2,045 mm
Wheelbase2,240 mm
Road Clearance285/310 mm (standard/max preload)
Seat Height865 (F) / 930 (R) mm
Curb Weight*743 kg
Fuel Capacity30 litres
Tread Front / Rear1,400 mm / 1,330 mm
Turning Radius5.4 m
Cargo Bed Dimensions (LxWxH)455 x 1,210 x 220 (F) / 125 (R) mm
Cargo Bed Capacity113 kg
Seating Capacity4
Vehicle Load Capacity499 kg
Towing Capacity590 kg
Lighting4x LED headlights
Model CodeKRT800JSFAN
