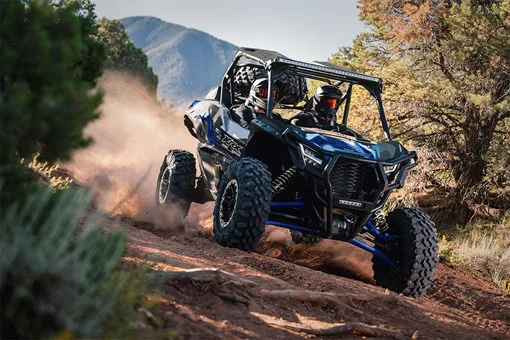

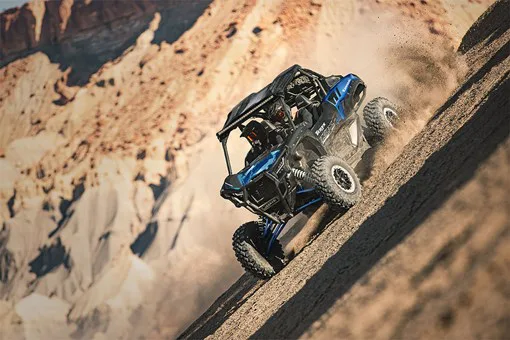

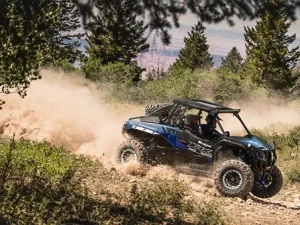

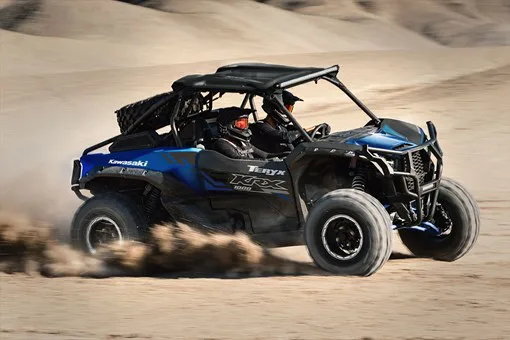

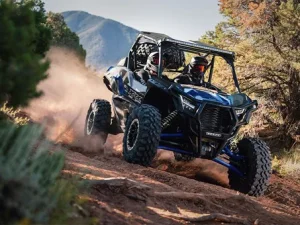

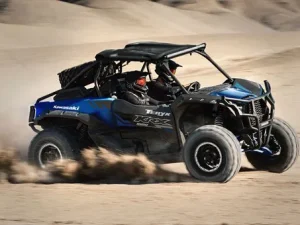

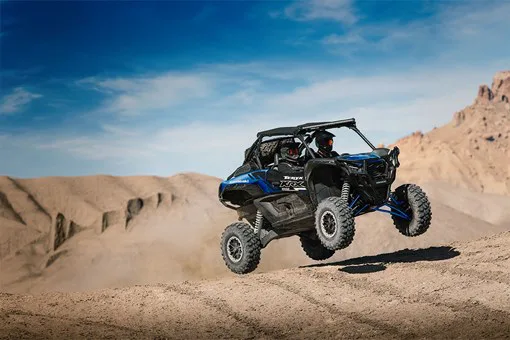

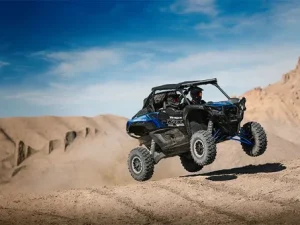

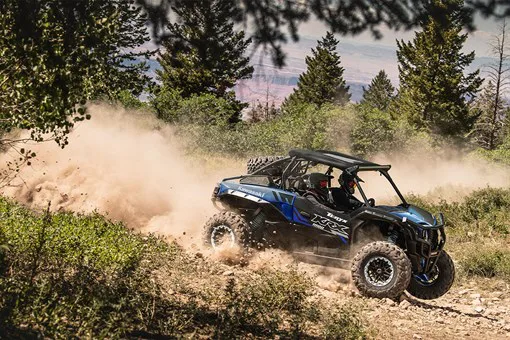

Kawasaki TERYX KRX 1000

$34,554.00

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

Built from the ground up to be the ultimate sport side by side, the Teryx KRX 1000 is not to be denied by the world's toughest trails. The game-changing Teryx KRX 1000 inspires confidence with a terrain-taming combination of power, performance and capability. Add in an unprecedented level of comfort and the superior build quality of Kawasaki side by sides, and you've got everything you need to push the limits for an adventure of a lifetime.

Key Features

  • Powerful, High-Torque 999
  • MASSIVE GROUND CLEARANCE AND LONG-TRAVEL SUSPENSION
  • Highly Rigid Frame with Integrated Roll-Over Protective Structure (ROPS)
  • Roomy interior with adjustable ergon
Maximum Power82.1 kW {112 PS} / 8,500 rpm
Maximum Torque102 Nm {10.4 kgfm} / 7,000 rpm
Engine4-stroke Parallel Twin
Displacement999 cc
Bore x Stroke92.0 x 75.1 mm
Compression Ratio11.5:1
Valve SystemDOHC, 4 valves per cylinder
Fuel SystemFuel injection: ø50 mm x 2
IgnitionDigital
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump
TransmissionDual-range (high/low) CVT with centrifugal clutch and reverse
Primary Reduction Ratio2.785 ~ 0.743 (belt converter)
Gear Ratio: Forward (High)4.504 (32/30 x 38/18 x 32/16)
Gear Ratio: Forward (Low)8.867 (42/20 x 38/18 x 32/16)
Gear Ratio: Reverse6.756 (32/20 x 38/18 x 32/16)
Final Reduction Ratio: Front3.589 (25/24 x 20/19 x 36/11)
Final Reduction Ratio: Rear3.538 (46/13)
Final Drive2WD/4WD, shaft
FrameLadder type, tubular steel
Front SuspensionDouble wishbone, SHOWA 2.5 Piggyback Shocks with adjustable preload and adjustable compression damping
Rear Suspension4-link trailing arm rear suspension, SHOWA 2.5 Piggyback Shocks with adjustable preload and adjustable compression damping
Front Wheel Travel472 mm
Rear Wheel Travel536 mm
SteeringRack and pinion with Electric Power Steering
Rake10.0°
Trail65 mm
Steering Angle (L/R)34° (IN) / 29° (OUT), 34° (IN) / 29° (OUT)
Front TyresMAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
Rear TyresMAXXIS Carnivore 31 x 10.00R15 8PR, with bead-lock wheels
Front BrakesDual ø258 mm discs
Front CalipersDual twin-piston (ø32 mm x2)
Rear Brake/sDual ø258 mm discs
Rear Caliper/sDual single-piston (ø38 mm x1)
Parking BrakeAuto-adjust mechanical disc
Dimensions (LxWxH)3,305 x 1,730 x 1,895 mm
Wheelbase2,510 mm
Road Clearance355/370 mm (standard/max preload)
Seat Height755 mm
Curb Weight*859 kg
Fuel Capacity40 litres
Tread Front / Rear1,505 mm / 1,510 mm
Turning Radius6.2 m
Cargo Bed Dimensions (LxWxH)370 x 840 x 230 mm
Cargo Bed Capacity159 kg
Seating Capacity2
Vehicle Load Capacity354 kg
Lighting2x LED headlights
Model CodeKRF1000ASFNN
