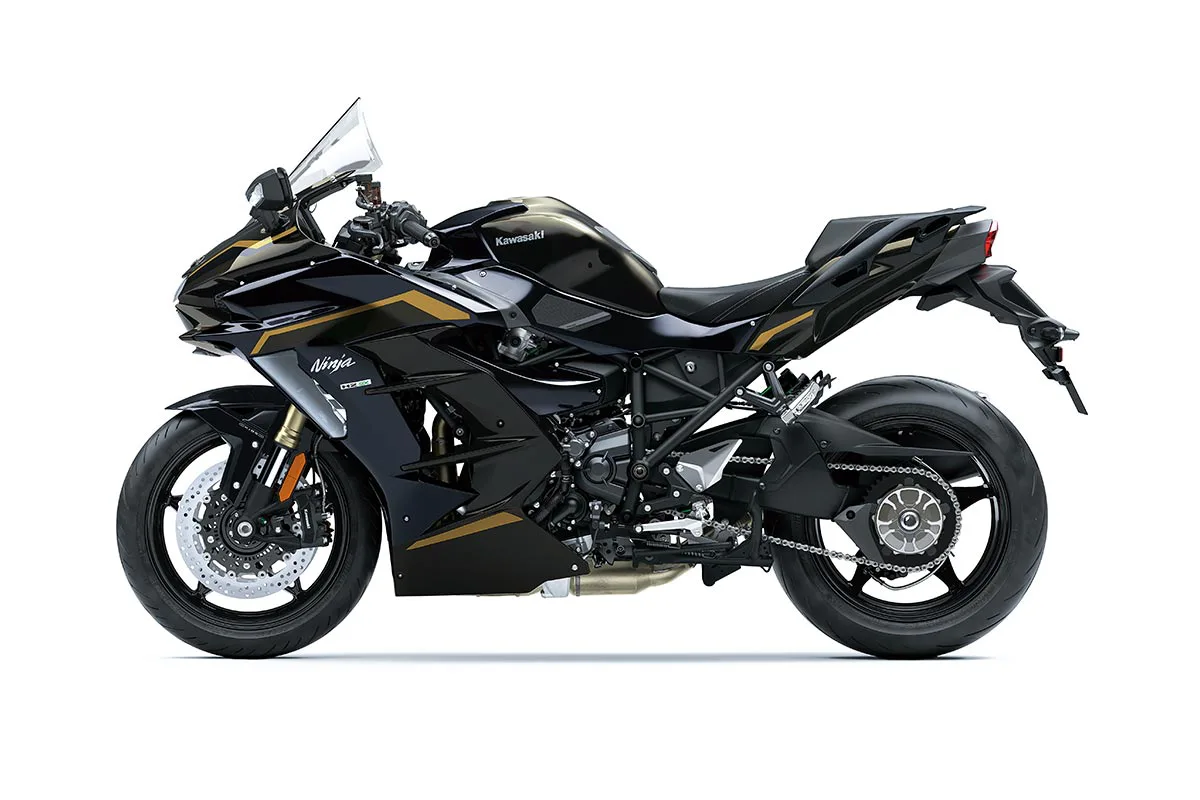

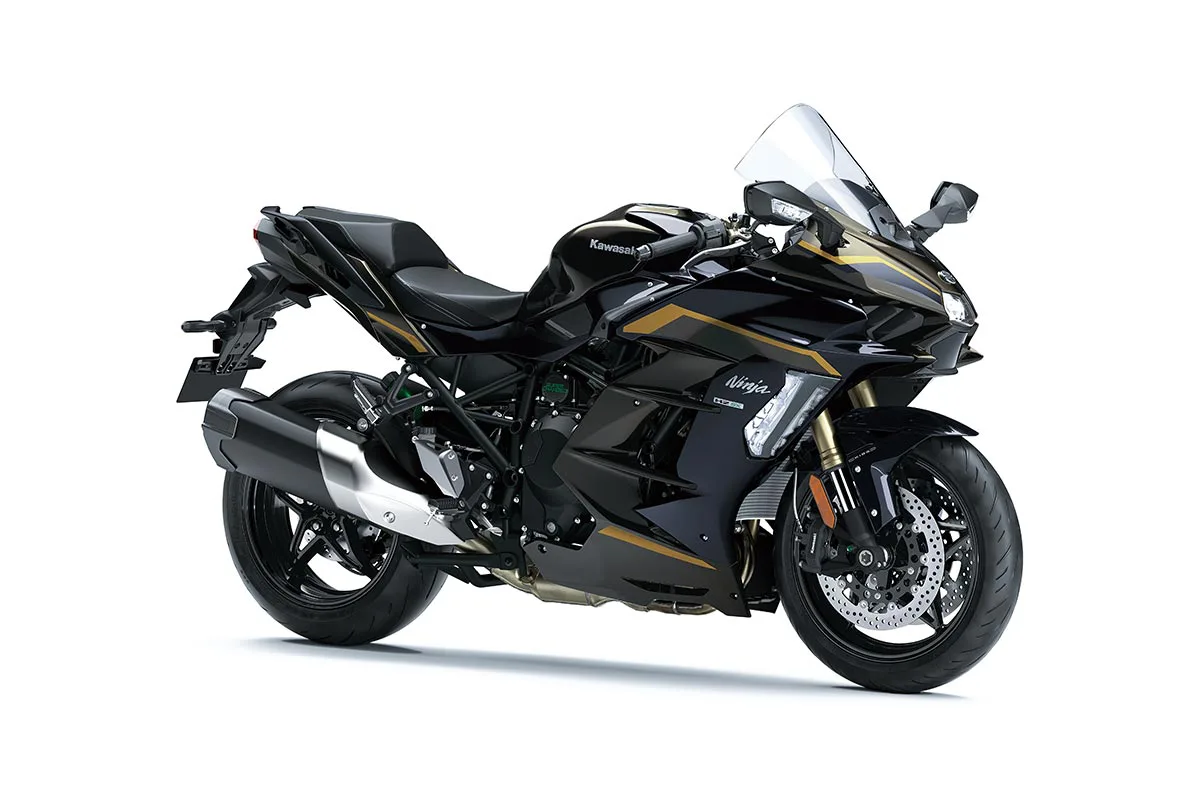

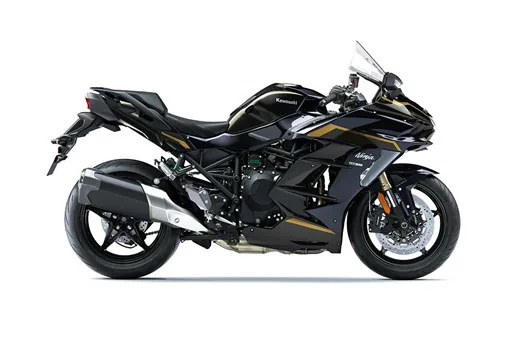

Kawasaki Ninja H2 SX

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

The new Kawasaki Ninja H2 SX is the Kawasaki's most advanced sport tourer ever; the ultimate integration of the highest standards of technology, performance and riding comfort. New dedicated features like the ARAS system provide real world benefits including adaptive cruise control and blind-spot detection. Integrated into the new 6.5” colour TFT instrumentation is Kawasaki's SPIN Infotainment system. Experience the exhilaration of the unique Balanced Supercharged Engine for both long distance touring and daily riding. The best technology is that which becomes a natural extension of ourselves and sets us free. Ninja H2 SX. ENGINEERED TO BE FREE.

Key Features

  • 998
  • Advanced Rider Assistance Systems (ARAS) with Adaptive Cruise Control (ACC), Forward Collision Warning (FCW), and Blind-Spot Detection (BSD)
  • 6.5” TFT colour instrumentation with Kawasaki SPIN smartphone-based infotainment app
  • Sport touring capability
  • Clean-mount pannier system
  • Ample wind protection
Maximum Power147.1 kW {200 PS} / 11,000 rpm
Maximum Power with Ram Air154.1 kW {210 PS} / 11,000 rpm
Maximum Torque137.3 Nm {14.0 kgfm} / 8,500 rpm
Engine4-stroke In-Line Four
Displacement998 cc
Bore x Stroke76.0 x 55.0 mm
Compression Ratio11.2:1
Valve SystemDOHC, 16 valves
Fuel SystemFuel injection: ø40 mm x 4 with dual injection
Intake SystemKawasaki Supercharger
IgnitionDigital
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump with oil cooler
Transmission6-speed, return, dog-ring
Primary Reduction Ratio1.480 (74/50)
Gear Ratio: 1st3.077 (40/13)
Gear Ratio: 2nd2.429 (34/14)
Gear Ratio: 3rd2.045 (45/22)
Gear Ratio: 4th1.727 (38/22)
Gear Ratio: 5th1.524 (32/21)
Gear Ratio: 6th1.348 (31/23)
Final Reduction Ratio2.444 (44/18)
ClutchWet multi-disc, manual
Final DriveChain
FrameTrellis, high-tensile steel, with Swingarm Mounting Plate
Front Suspensionø43 mm inverted fork with rebound and compression damping and spring preload adjustability, and top-out springs
Rear SuspensionNew Uni Trak, gas-charged shock with piggyback reservoir, compression (high/low-speed) and rebound damping adjustability, remote spring preload adjuster, and top-out spring
Front Wheel Travel120 mm
Rear Wheel Travel139 mm
Rake24.7°
Trail103 mm
Steering Angle (L/R)30° / 30°
Front Tyre120/70ZR17M/C (58W)
Rear Tyre190/55ZR17M/C (75W)
Front Brake/sDual semi-floating ø320 mm discs
Front Caliper/sDual radial-mount, monobloc, opposed 4-piston
Rear Brakeø250 mm disc
Rear Caliper2-piston
Dimensions (LxWxH)2,175 x 790 x 1,260 mm
Wheelbase1,480 mm
Road Clearance130 mm
Seat Height820 mm
Curb Weight*266 kg
Estimated Dry Weight**246 kg
Fuel Capacity19 litres
Model CodeZX1002PTFNN
