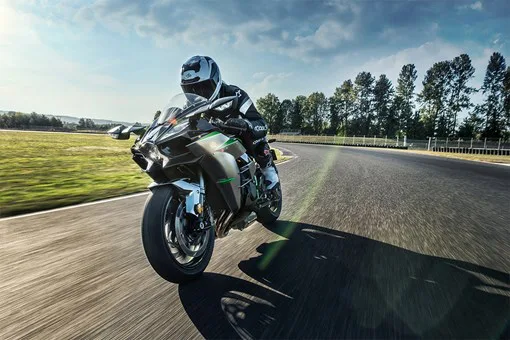

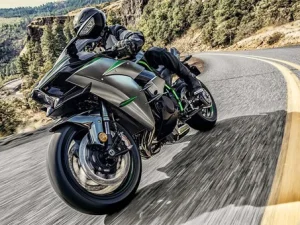

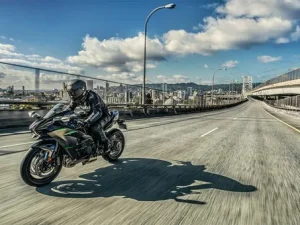

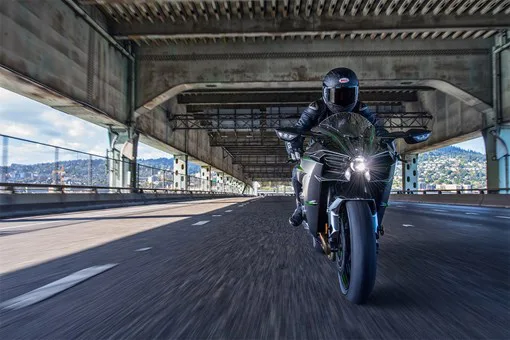

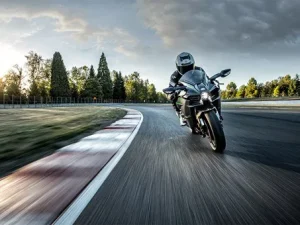

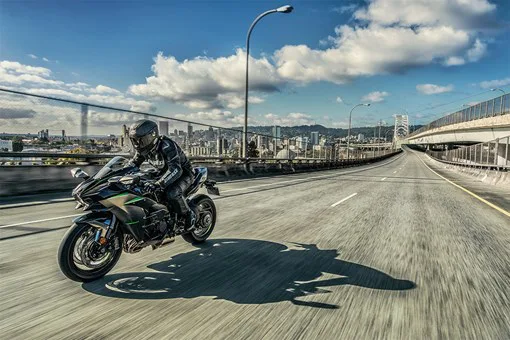

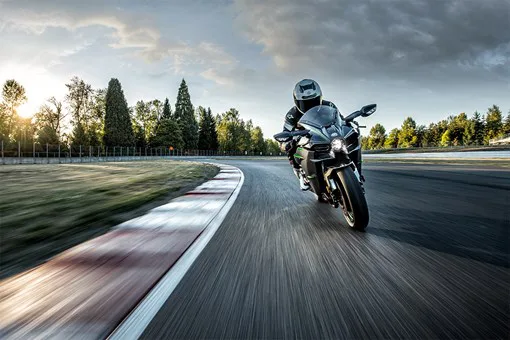

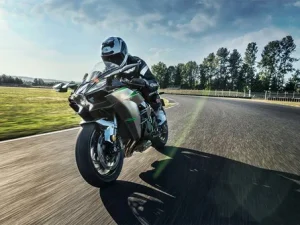

Kawasaki Ninja H2

Contact Trio for:

  • Confirming this product suits your needs
  • Pricing on options and add-ons
  • Current stock availability
  • Delivery or pickup arrangements

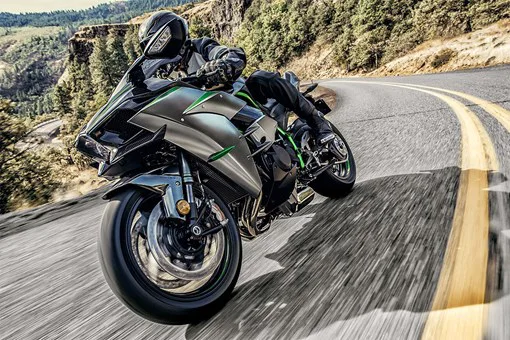

The Ninja H2 and Ninja H2 Carbon bring the mind-bending power of Kawasaki's supercharged hypersport machine to the street. Boasting a powerful 998 cc In-Line Four supercharged engine, state-of-the-art electronics, and the latest Brembo brakes, the Ninja H2 and Ninja H2 Carbon amount to pure performance on the road.

Key Features

  • 998
  • Lightweight trellis frame
  • Fully adjustable high-performance racing suspension
  • Advanced electronics
  • Brembo Stylema brake calipers
  • TFT colour instrumentation
  • Smartphone connectivity
  • Street-legal hypersport performance
  • KYB AOS-II front fork and Öhlins TTX36 rear shock
  • Kawas
Maximum Power170.0 kW {231 PS} / 11,500 rpm
Maximum Power with Ram Air178.5 kW {243 PS} / 11,500 rpm
Maximum Torque141.7 Nm {14.4 kgfm} / 11,000 rpm
Engine4-stroke In-Line Four
Displacement998 cc
Bore x Stroke76.0 x 55.0 mm
Compression Ratio8.5:1
Valve SystemDOHC, 16 valves
Fuel SystemFuel injection: ø50 mm x 4 with dual injection
Intake SystemKawasaki Supercharger
IgnitionDigital
StartingElectric
CoolingLiquid-cooled
LubricationForced lubrication, wet sump with oil cooler
Transmission6-speed, return, dog-ring
Primary Reduction Ratio1.551 (76/49)
Gear Ratio: 1st3.188 (51/16)
Gear Ratio: 2nd2.526 (48/19)
Gear Ratio: 3rd2.045 (45/22)
Gear Ratio: 4th1.727 (38/22)
Gear Ratio: 5th1.524 (32/21)
Gear Ratio: 6th1.348 (31/23)
Final Reduction Ratio2.444 (44/18)
ClutchWet multi-disc, manual
Final DriveChain
FrameTrellis, high-tensile steel, with Swingarm Mounting Plate
Front Suspensionø43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Rear SuspensionNew Uni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring
Front Wheel Travel120 mm
Rear Wheel Travel135 mm
Rake24.5°
Trail103 mm
Steering Angle (L/R)27° / 27°
Front Tyre120/70ZR17M/C (58W)
Rear Tyre200/55ZR17M/C (78W)
Front Brake/sDual semi-floating ø330 mm Brembo discs
Front Caliper/sDual radial-mount, Brembo Stylema monobloc, opposed 4-piston
Rear Brakeø250 mm disc
Rear CaliperBrembo, opposed 2-piston
Dimensions (LxWxH)2,085 x 770 x 1,125 mm
Wheelbase1,455 mm
Road Clearance130 mm
Seat Height825 mm
Curb Weight*238 kg
Estimated Dry Weight**218 kg
Fuel Capacity17 litres
Model CodeZX1002JTANN
